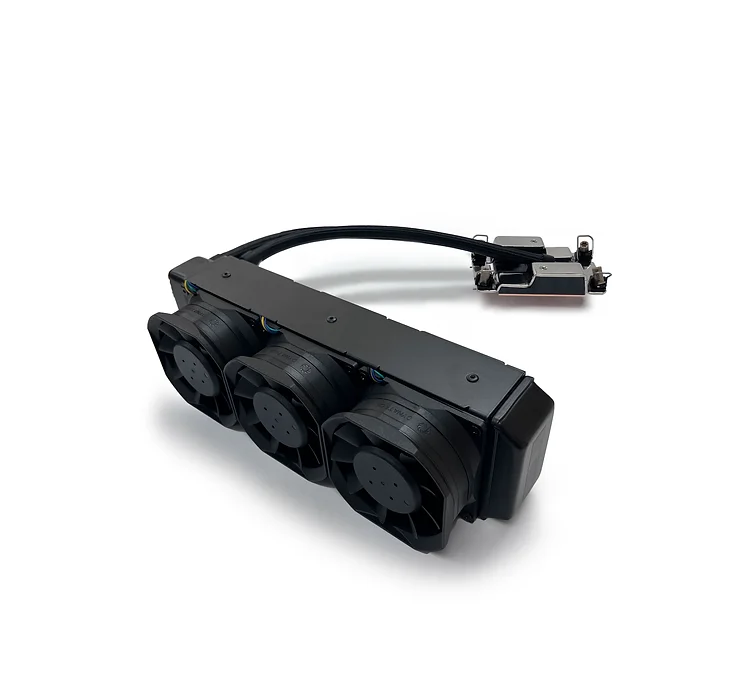

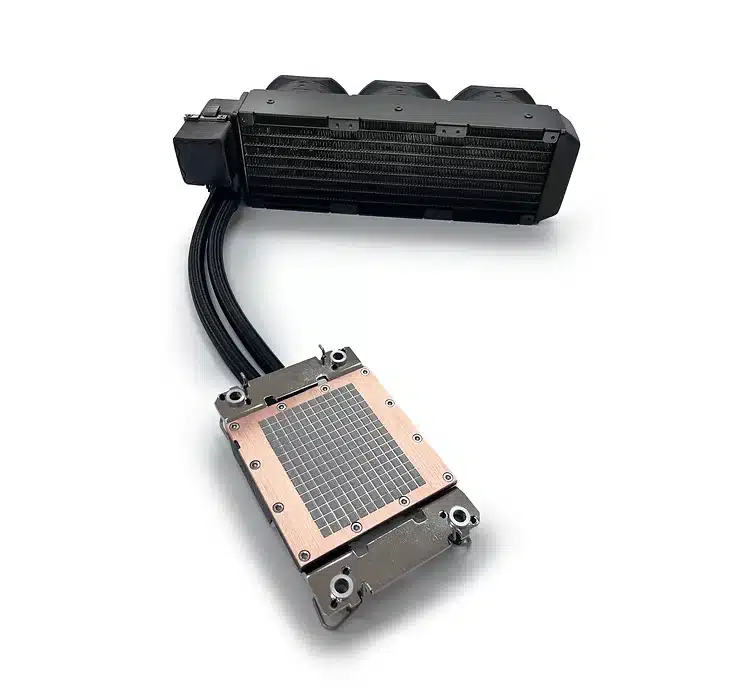

FAN Dynatron L45-4677 LGA4677 2U 600W
| CPU Support | Intel Sapphire Rapids and Emerald Rapids |
| CPU Socket | LGA4677 |
| Screw Type | #8-32 |
| Installation Torque | 8 in-lb |
| Solution | 2U Server and Up |
| Dimension | 80 x 80 x 38 mm |
| Cold Plate Dimension | 118 x 78 x 22.8 mm |
| Radiator Dimension | 297.4 x 82.0 x 83.5 mm |
| Bearing | Dual Ball |
| Rated Voltage | 12V |
| Rated Speed | At Duty Cycle 0~20%: 2400± 10% RPM At Duty Cycle 50%: 4800± 10% RPM At Duty Cycle 100%: 8000±10% RPM |
| Fan Power Consumption | At Duty Cycle 0~20%: 1.2 W At Duty Cycle 50%: 5.52 W At Duty Cycle 100%: 24.72 W |
| Maximum Airflow | At Duty Cycle 0~20%: 35.52 CFM At Duty Cycle 50%: 67.24 CFM At Duty Cycle 100%: 115.61 CFM |
| Rated Static Pressure | At Duty Cycle 0~20%: 1.39 mm-H2O At Duty Cycle 50%: 5.97 mm-H2O At Duty Cycle 100%: 34.06 mm-H2O |
| Acoustical Noise | At Duty Cycle 0~20%: 25.63 dBA At Duty Cycle 50%: 47.85 dBA At Duty Cycle 100%: 64.40 dBA |
| Lead Wire Pin Out | Pin#1- Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue(PWM) |
| Pump Power Consumption | 7.2W |
| Life – Continuous operating
under normal temperature (40 °C or 104 °F) |
70,000 Hours |
